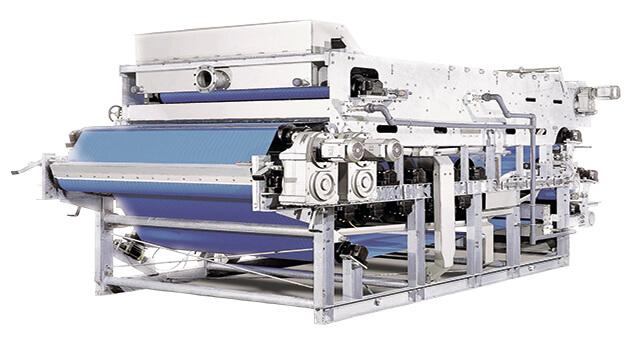

AS-H Belt Press G3
The Alfa Laval AS-H G3 belt filter press dewaters high volume throughputs of low solids feed into high solids dry cake. It is available in a number of configurations that can be customized to your wastewater dewatering needs.
The industry standard for performance in wastewater dewatering
- Flexible design – easily upgraded and reconfigured as your needs change
- High precision variable-orifice polymer mixer
- High volume, high cake solids performance
- Low maintenance, operator friendly design features
- 3-belt, independent gravity deck design available for low solids (< 1.5% solids)
A flexible design, because you can’t always predict the future
A key strength of the Alfa Laval AS-H G3 belt filter press is the modular design. It can be configured into several different designs depending on your sludge / residual dewatering needs.
Whether you have dilute sludge and require the pre-thickening 3-belt design, or want the extra dewatering achieved by expanding to the 12-roller layout, the Alfa Laval G3 belt filter press can be modified to accommodate your process specifications.
Modifications can easily be made in the future as well if conditions change thanks to the modular nature of the machine.
How it works
The Alfa Laval AS-H Belt Press G3 begins the dewatering process with a proprietary variable-orifice, in-line polymer mixer that combines polymer and slurry instantly, in less than one second. The product then begins to drain over an endless, horizontal porous filter belt. The product is then sandwiched by a second filter belt before further dewatering by a series of decreasing diameter rollers. Final moisture removal is achieved by shear rollers arranged to give minimum 180 degree belt wrap in order to optimize dewatering.
Operator-specified belt tensioning is automatically maintained by a hydraulic belt tensioning and alignment system, which recognizes and corrects for subtle condition variations such as belt stretching or process changes. The arrangement of the Belt Press G3 gravity drainage zone ensures even distribution of the conditioned slurry over the effective width of the moving filter belt.
The Belt Press G3 is equipped with lifetime-rated bearings, each protected from contaminates with triple-labyrinth seals and shaft-mounted splash guards.
Meeting your exact requirements
A variety of features and options makes the high-capacity Alfa Laval AS-H G3 belt filter press an excellent choice for your dewatering needs:
- Available in 8 or 12 pressure roller designs
- Extended deck and 3rd belt independent pressure deck options allow for excellent dewatering performance under a variety of conditions
- Adjustable wedge dewatering zone allows for process optimization
- Lifetime rated bearings
- Radial grid and perforated roller to accelerate dewatering
Achieve 2% or more additional dry solids from your belt filter press or gravity belt thickener
When placed ahead of an existing belt filter press or gravity belt thickener, the Orege SLGTM sludge pre-treatment system changes the rheology of your sludge so that it releases water more freely. Its small footprint means it can likely fit in your existing facility. Alfa Laval has an exclusive agreement to supply Orege in greenfield and brownfield applications.
Reduce your sludge management expenses by:
- Increasing final cake dryness by 2% or more and reducing hauling volumes
- Reducing polymer use
- Increasing belt filter press / gravity belt thickener throughput
Learn more about the Orege SLGTM system
