ORCA Offshore

Vacuum vapour compression water makers that are simple to maintain and compact to install in any offshore facility.

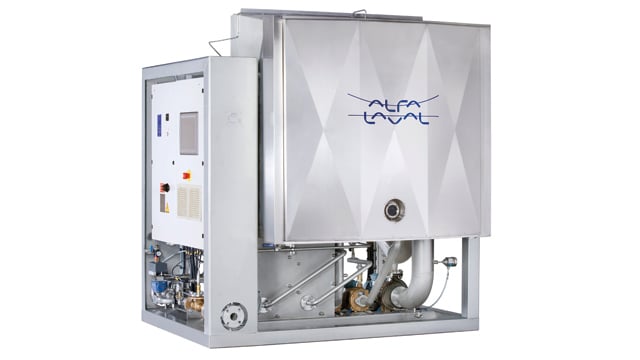

ORCA offshore 640x360px

Fresh water is one of the main utilities required on board any offshore facility. Alfa Laval provides a range of solutions for converting seawater into fresh water. Alfa Laval equipment is designed for automatic operation with continuous control and monitoring of fresh water quality. Built using titanium and other seawater resistant materials, the generators feature a simple, compact design that ensures long working life and low operation and maintenance costs. Vacuum vapour compression plants are a simple, efficient method of producing a constant supply of high quality fresh water for both drinking and process use. Using the vacuum distillation process, they convert seawater into fresh water using electricity, but with only minimal power consumption The process ensures fresh water with salinity levels below 2 ppm.



Features and benefits

  • Simple, compact design
  • Titanium heat exchanger plates, along with other seawaterresistant materials
  • Combined ejector water and feed water system
  • Freshwater control system
  • High quality fresh water
  • Low operating cost
  • “Start and forget” operation
  • Easy maintenance
  • Reliability and long working life

How it works

The ORCA offshore series covers a capacity range of 20–70 m3/24h. Alfa Laval water makers can be configured to suit any offshore requirement. The ORCA offshore series is optimized for use on board offshore drilling rigs and production facilities.

Basic equipment

Water maker unit including titanium plate heat exchanger for combination evaporator and condenser, stainless steel distiller shell, air ejector, freshwater pump, compressor, UL-approved control panel with built-in freshwater quality monitoring system.

Additional equipment

  • Seawater supply pump with offshore standard electric motor
  • Feed water anti-scale chemical dosing unit

Optional equipment

  • Freshwater pH adjustment filter
  • Silver-ion or UV sterilizers

All the above can be pre-piped, pre-wired and skid mounted.
