Hygienic fittings DIN EN 10357-A

Connect and protect your hygienic processing lines against the risks of contamination and corrosion with Alfa Laval Hygienic fittings DIN EN 10357-A, formerly DIN 11850. Made of AISI 304L or 316L stainless steel, these ensure enhanced hygiene, product safety, and compatibility with DIN 11851, 11853, 11864 and 32676.

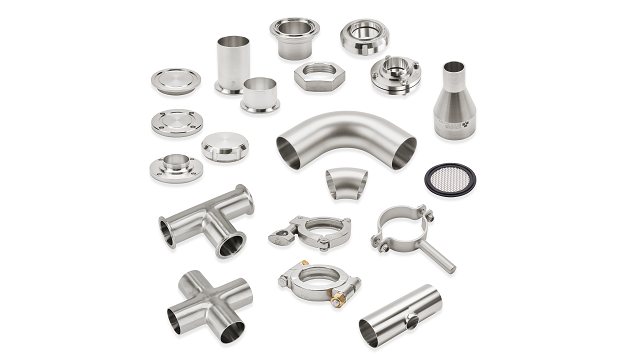

DIN EN 10357-A  Hygienic fittings

Safeguard process integrity and product safety, quality with hygienic fittings

  • Compliance with global hygienic standards
  • Easy-to-weld, easy-to-clean fittings for hygienic applications
  • Worldwide availability with short delivery times from Alfa Laval global distribution centres
  • Global expertise with local service network

Precision-engineered, these corrosion-resistant Hygienic fittings DIN EN 10357-A, formerly DIN 11850, are cold-formed from a single piece of AISI 304L or 316L stainless steel with tight tolerances and Ra <0.8-1.6 μm internal surface finishes. They easily integrate with compatible components.

A Ra ≤ 0.8 μm internal surface finish provides the exceptional hygiene level required for applications across the food and beverage industries.


For any enquiry, please contact us. Our Customer Care team will be able to best answer you.



Get in touch

Did you know that tubes and fittings make up 90% of the fluid’s surface contact throughout the process flow?



Watch the animation and learn how tubes and fittings are the vital backbone of any process line.

Product Catalogue Image 640 x 360

Find the products you are looking for



The digital Alfa Laval Product Catalogue makes it easy to find and select the products you need. When you request a quote, the catalogue will list Alfa Laval’s partners in your region – and you can send your request directly.



Go to the Product Catalogue here

Tubes and fittings – The vital backbone of hygienic processes

The importance of tubes and fittings in hygienic production cannot be overstated. Connecting all processing equipment, they safeguard the reliability, efficiency, safety and sustainability of the process flow.



Reboot fittings icon_Safety.png

Superior safety

Designed for unique cleanability and full traceability to safeguard the integrity of processes and products.

Reboot fittings icon_Reliability.png

Unmatched reliability

Exceptional quality, durability, and longevity to ensure high uptime and productivity.



Reboot fittings icon_Efficiency.png

Optimum efficiency

Engineered for seamless flow and easy cleaning, assuring optimized processes and increased yield.

Reboot fittings icon_Sustainability.png

Sustainability at heart

Manufactured and delivered with sustainability in mind, reducing the carbon footprint and meeting sustainability targets.



The wide range of tubes and fittings at Alfa Laval

TUBES Product vignette.jpg

Tubes

Alfa Laval's hygienic tubes, compliant with standards DIN, EN, ISO, and ASME BPE, are the backbone in process lines for various industries. We offer world-wide supply of tubes designed to maintain flow pressure, CIP, integrating seamlessly with other fittings.

Bend image.jpg

Bends

Hygienic bends, compliant with standards DIN, EN, ISO, BS, 3A and ASME BPE, control flow direction, minimize resistance and turbulence, and maintain pressure during directional changes. Designed for cleaning in place (CIP), they're easily integrated with other fittings and components in the process line.


Tees

Alfa Laval supplies hygienic tees compliant with DIN, EN, ISO, BS, 3A and ASME BPE standards. These tees offer a smooth finish for optimal cleaning, preventing microbial contamination. Seamless connections eliminate threads.


Reducers

Alfa Laval supplies hygienic tees compliant with DIN, EN, ISO, BS, 3A and ASME BPE standards. These tees offer a smooth finish for optimal cleaning, preventing microbial contamination. Seamless connections eliminate threads.


Connections

Alfa Laval supplies hygienic connections, designed to meet all major standards including DIN, EN, ISO, BS, 3A and ASME BPE. Each connection comprises a liner, male part, nut, and gasket. Our connections utilize stainless steel, especially types 304L and 316L. Accompanied by hygienic gaskets, Alfa Laval's connections resist cleaning agents and high temperatures.



CLAMP Product vignette_cropped.jpg

Clamps

Alfa Laval provides hygienic clamps meeting DIN, EN, 3A and ASME BPE standards. These stainless steel clamps offer easy assembly/disassembly for quick maintenance, cleaning in place (CIP), and ensure durability. 


Flanges

Alfa Laval provides hygienic flanges that meet standards DIN, EN and , ISO. Crafted from stainless steel 316L, these flanges are non-reactive, non-corrosive, and resist fluid degradation. Compatibility with Clean-in-Place (CIP) processes.

FERRULE Product vignette_cropped.jpg

Ferrules

Alfa Laval supplies hygienic ferrules including clamps and gaskets compliant with DIN, EN, ISO, BS, 3A and ASME BPE standards. Crafted from corrosion-resistant stainless steel like 304L and 316L, these ferrules boast a smooth interior finish, minimizing microbial growth.

End cap image.jpg

End caps

Alfa Laval supplies hygienic end caps conforming to standards DIN, EN, ISO, BS, 3A and ASME BPE. Made of non-reactive, non-corrosive stainless steel 304L and 316L, they have a smooth interior, avoiding microbial build-up and supporting Cleaning-in-Place (CIP). Alfa Laval ensures quality, offering digital certifications.


Gaskets

Our gaskets primary function is to provide an effective seal even under varying temperature and pressure conditions. Alfa Laval supply gaskets within the following materials – all in conformity with FDA: EPDM rubber (Ethylene Propylene), Actylonitrile Butadiene Rubber (NBR), Silicone rubber (Q), Fluorine rubber (FPM/FKM), Hydrogenated actylonitrileButadiene rubber (HNBR) and Perfluoroalkoxy polymer (PFA).



Pipe Holder.jpg

Pipe holders

Alfa Laval offers pipe holders in grade 1.4301 (304) for its corrosion resistance and sanitary properties. Available with varying shaft lengths and welding attachments, they match our tube and fitting dimensions. Our pipe holders withstand varying pressures, temperatures, and mitigate cross-contamination in multi-product facilities. They also effectively dampen vibrations, ensuring system integrity.



TOOLS FOR TUBING Product vignette.jpg

Tools for tubing

Alfa Laval offers all essential tools for tubing and fittings.

Our product range includes spanners for DIN EN 10357 and ISO, spanners for SMS, spanners for IDF round nuts, spanners for hexagon nuts, universal spanners for round nuts and spanners for RJT (BS) hexagon nuts. It also includes cuttings device for DIN EN 10357 and cutting device for ISO.
