Transmetteur de niveau potentiométrique

The Alfa Laval Potentiometric Level Transmitter is designed specifically for small tanks containing highly viscous and pasty products, such as ketchup, honey and toothpaste.

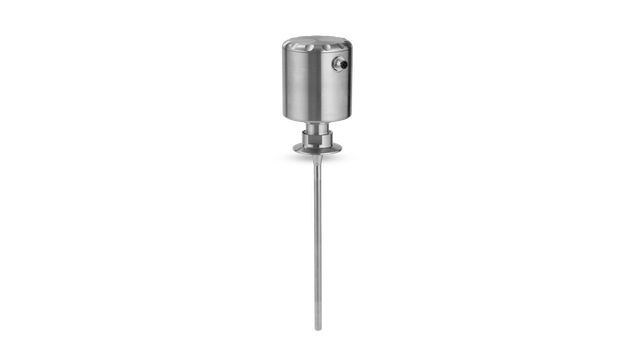

potentiometric level transmitter 640x360

Compact, hygienic design

The Alfa Laval Potentiometric Level Transmitter is designed specifically for small tanks containing highly viscous and pasty products, such as ketchup, honey and toothpaste.

All wetted parts are made of AISI 316L stainless steel and PEEK, and designed to withstand process temperatures between -20 and +140°C. Because these 3-A certifed transmitters can withstand high temperatures, they are well suited for use in Cleaning-in-Place (CIP) and Sterilization-in-Place (SIP) processes.

Ease of installation

The Alfa Laval Potentiometric Level Transmitters are easily mounted in top, bottom or angled position. Regardless of position, advanced integrated electronics enable automatic recognition of the transmitter output signal thus ensuring reading accuracy.

For more information, please refer to Documentation.

Product Benefits

  • Compact, hygienic design
  • Easy of installation
  • Designed specifically for small tanks

Catalogue produits

Dernière version en ligne du catalogue "A portée de main"

Accédez à la version française

Fonctionnement

Operating principle

The Potentiometric Level Transmitter can be used with all media that have a conductivity of at least 50 μS/cm. The low resistive measuring probe on the transmitter conducts a high frequency current through the medium in the tank.

The voltage applied between the probe and the tank wall is then measured. The output voltage is proportional to the tank filling level. The measurement is unaffected by temperature and adhesive media.

Potentiometric level transmitter drawing, web
