AlfaQ

Alfa Laval AlfaQ™ heat exchangers are used for HVAC applications such as district cooling substations, ice-storage systems, data centers, and free cooling systems. The range is certified according to the AHRI Liquid to Liquid Heat Exchangers (LLHE) Certification Program which ensures thermal performance according to manufacturers’ published specifications. AHRI certification is the only global, third-party performance certification for plate heat exchangers.

阿法拉伐AlfaQ板式换热器-AlfaQ plate heat exchanger

AHRI performance certification

The Air Conditioning, Heating and Refrigeration Institute (AHRI) certification is an independent, third-party verification of thermal performance. Through its certification program and standards, AHRI strives to help customers save energy, improve their productivity and help to ensure a better environment.

AHRI Liquid to Liquid Heat Exchanger (LLHE) Certificaiton Program ensures that the product performs in accordance with manufacturers' published specifications, and is particularly useful in applications such as district cooling substations, ice-storage systems, data centers and free cooling systems.

For more information, visit Alfa Laval's HVAC AHRI perfomance certification page .

Well-designed and long service life

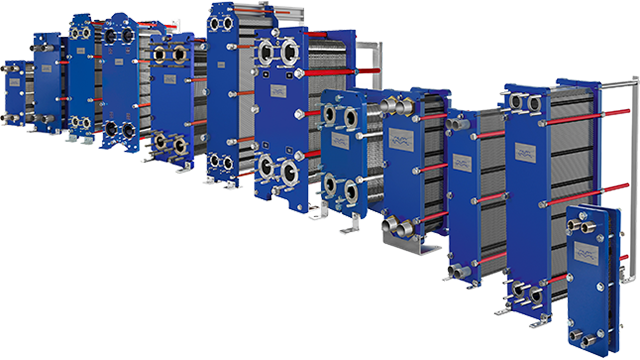

Alfa Laval AlfaQ™ gasketed plate-and-frame heat exchangers are available to meet most heat transfer requirements – whether large or small – demonstrating our commitment to optimizing the performance of our customers’ processes.

Equipped with well-designed features the heat exchangers are easy to maintain and have a long service life. Some of the features available include:

  • ClipGrip™ gasketa glue free gasket with superior alignment that ensures a perfect seal and trouble-free maintenance.
  • Glued gasketa two-component, oven-cured epoxy glue that keeps the gasket in place during any possible cleaning condition.
  • CurveFlow™ distribution areaensures full use of the heat transfer area and minimizes fouling.

Additionally, the pressure plate roller, the bearing boxes on tightening bolts, and the 5 point alignment system with reinforced hangers make opening and closing the heat exchanger quick and easy without the need for heavy tools or the risk of damaging the plates.

AlfaQ™ is quick and easy to modify if process parameters change. Our team’s expertise and the availability of parts bring you peace of mind.

Plate types for different needs

AlfaQ™ is available with two different plate configurations:

  • Single plate with a chevron pattern design for parallel flow allowing for optimum thermal performance and pressure drop.
  • Single plate with a chevron pattern design for diagonal flow through the heat exchanger when it is mounted horizontally and requires draining.

Peace of mind

Alfa Laval global service network is never far away.

AHRI est une organisation assurant la promotion de la qualité et de la sécurité au sein de l'industrie du génie climatique nord-américaine. Avec plus de 300 fabricants, elle est l'une des plus importantes associations professionnelles en Amérique du Nord.

Ses membres représentent plus de 90% des équipements fabriqués pour le refroidissement de locaux résidentiels et commerciaux, le chauffage d'ambiance et la production d'eau chaude sanitaire. AHRI dispose de 80 certifications dont, l'une d'entre elles est la certification des échangeurs liquide-liquide.

Avantages

  • Haut rendement énergétique
  • Configuration flexible
  • Facilité d'installation
  • Grande facilité d'entretien
  • Accès au réseau de services mondial d'Alfa Laval

Fonctionnement

La surface d'échange thermique d'un échangeur de chaleur à plaques et joints Alfa Laval comprend une série de plaques corruguées, assemblées entre le bâti fixe et le bâti mobile, ce qui maintient la pression théorique. L'étanchéité entre les plaques est assurée par des joints. Pour obtenir de meilleurs performances thermiques et un faible pincement de température, les fluides circulent normalement à contre-courant dans l'échangeur.

L'échangeur AlfaQ est proposé avec plusieurs profondeurs d'empreinte, différents angles de chevrons et différentes formes de corrugation qui sont conçus et sélectionnés avec soin pour obtenir des performances optimales. Avec nos deux types de zones de distribution, CurveFlow et à pressage "chocolat", les fluides sont distribués de manière homogène sur l'ensemble de la plaque. La surface de transfert thermique est donc utilisée en totalité, ce qui évite les zones de stagnation pouvant favoriser l'encrassement.

Nos spécialistes de l’ingénierie thermique vous aideront à concevoir et sélectionner le modèle et la configuration qui conviennent aux besoins de votre application, en vous fournissant des performances thermiques maximales et en réduisant la perte de charge.

GPHE liquide / liquide

Réchauffeur à vapeur GPHE

GPHE 2 passes
